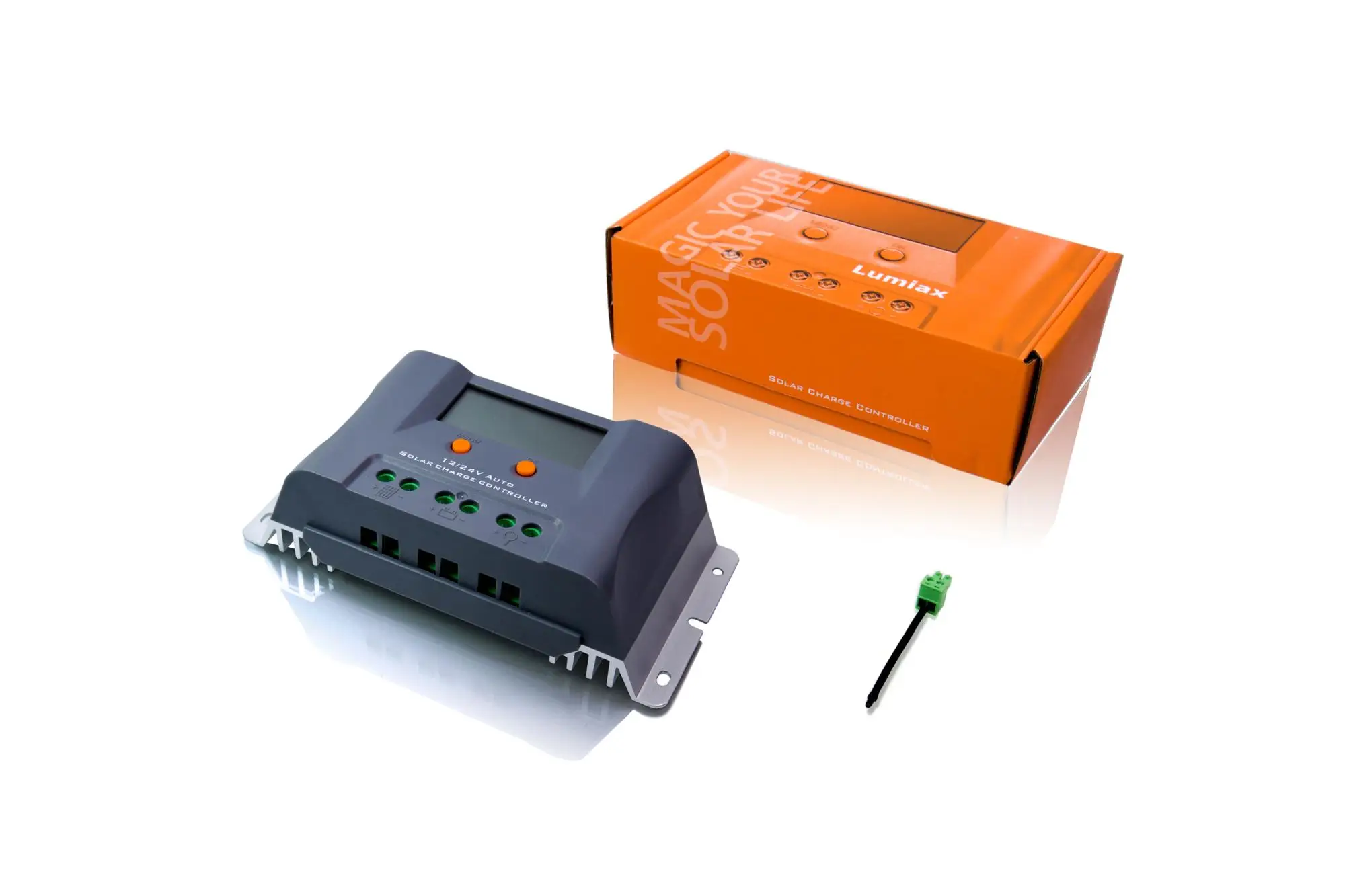

High Quality And Durable 12V Mppt Solar System Charge Controller
High Quality And Durable 12V Mppt Solar System Charge Controller
Produktbeschreibung
Overview
Quick Details
- Place of Origin:
-
Shandong, China
- Brand Name:
-
Lumiax
- Model Number:
-
MT1050-EU
- Type:
-
MPPT
- Application:
-
Charger Controller, Solar System Controller
- Work Time (h):
-
24h
- Max PV Power:
-
130W
- Max PV Voltage:
-
45V, 45V
- Certificate:
-
CE/ISO:9001/14001 RoHS
- Warranty:
-
2YEARS
- Product name:
-
Solar Charge Controller
- Certification:
-
CE/ISO:9001/14001 RoHS
- Feature:
-
USB
- Battery type:
-
Liquid,GEL,Lithium,AGM
- OEM and customer-tailored:
-
YES
- Display:
-
LCD Screen
- Charge way:
-
MPPT,Boost,Equalization,Float
- MPPT efficiency:
-
>99.9
- Max input power:
-
130W
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Week
Packaging & Delivery
- Packaging Details
- Single package size:200*100*60mm
Single gross weight:0.7kg
Package Type:20pcs/Carton 420*240*360mm
G.W:10.8kg(including user manual)
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 10 11 - 100 >100 Est. Time(days) 3 7 To be negotiated
Product Paramenters
MT1050-EU | |||||||
Ampere | 10A | ||||||
System Voltage | 12V | ||||||
Mppt Charging Voltage | before boost or equal charging stage | ||||||
Boost Voltage | 14.5V @25℃ | ||||||
Equal Voltage | 14.8V @25℃（Liquid, AGM） | ||||||
Float Voltage | 13.7V @25℃ | ||||||
Low Voltage Disconnect | 10.8~11.8V, SOC1~5 | ||||||
Reconnect Voltage | 11.6~12.8V | ||||||
Overcharge Protect | 15.5V | ||||||
Battery Type | Liquid, Gel, AGM | ||||||
Max Voltage On Pv Terminal | 45V | ||||||
Max Input Power | 130W | ||||||
Dusk/Dawn Detect Voltage | 8V | ||||||
Mppt Tracking Range | (Battery Voltage+1V) ~ Voc*0.9 | ||||||
Output Current | 10A | ||||||
USB Interface | 5V,2A | ||||||
Working Mode | Always on,Street lamp,User-defined mode | ||||||
Max Tracking Efficiency | >99.9% | ||||||
Max Charge Conversion | 97.5% | ||||||
Dimensions | 189*96*53mm | ||||||
Weight | 420g | ||||||
Self Consumption | 7mA | ||||||
Grounding | Common Negative | ||||||
Wire Recommend | 8AWG (10mm²) | ||||||
Protection Degree | IP32 | ||||||
